Material Structure:

1. POM with lead 0.3~0.5mm

2. Porous bronze 0.2~0.3mm

3. Steel backing 0.4~2.2mm

4. Copper-plating 0.008mm

Characteristics:

1. Good load capacity&wear-resistant

2. Suitable for linear, oscillating and rotating movements

3. Optimum performance under relatively high loads and low speeds

Availability:

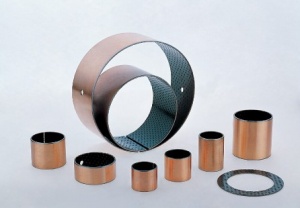

1. Standard cylindrical DX bushing, DX thrust washers and DX strips are available.

2. Special designs are produced at short time.

Applications:

SF-2X DX bushing is widely used in all kinds of industries, such as automotive: Steering gear, power steering, pedal bushes, seat slides, kin-pin bushes, tailgate pivots, brake caliper bushes, etc; Industrial: Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.

Technical Data:

1. Load capacity: 70N/mm2

2. Friction value: 0.05 to 0.25μ

3. Temperature: -40 to +130℃

4. Max. Pv(oil condition): 22N/mm2·m/s

5. Max. speed: 2.5m/s

Quality Standard:

DIN 1494
